EXAMPLE STEEL DETAILING CAD DRAWINGS

Click on a drawing to reveal a large version. Drawing examples include General Arrangement Drawings, Steel Fabrication Drawings, Steel Part Drawings and 3D views of everything from structural steel to stairs.

3D VIEWS & GENERAL ARRANGEMENT CAD DRAWINGS

Steelwork drawing of a swiming pool building

General arrangement drawing of s steel portal frame building

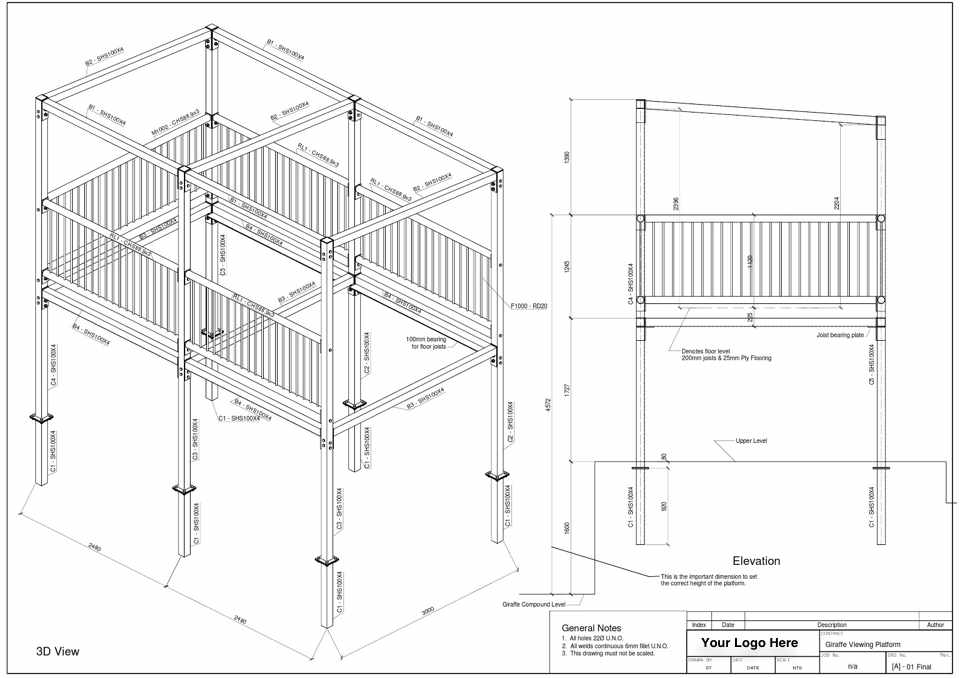

3D view of a steel platform

3D view of a structural steel building

Side elevation drawing of a steel portal frame building

General arrangement drawing of a steel stair

Details drawing of a steel stair

Various connection detaiil drawing

STEEL FABRICATION CAD DRAWINGS

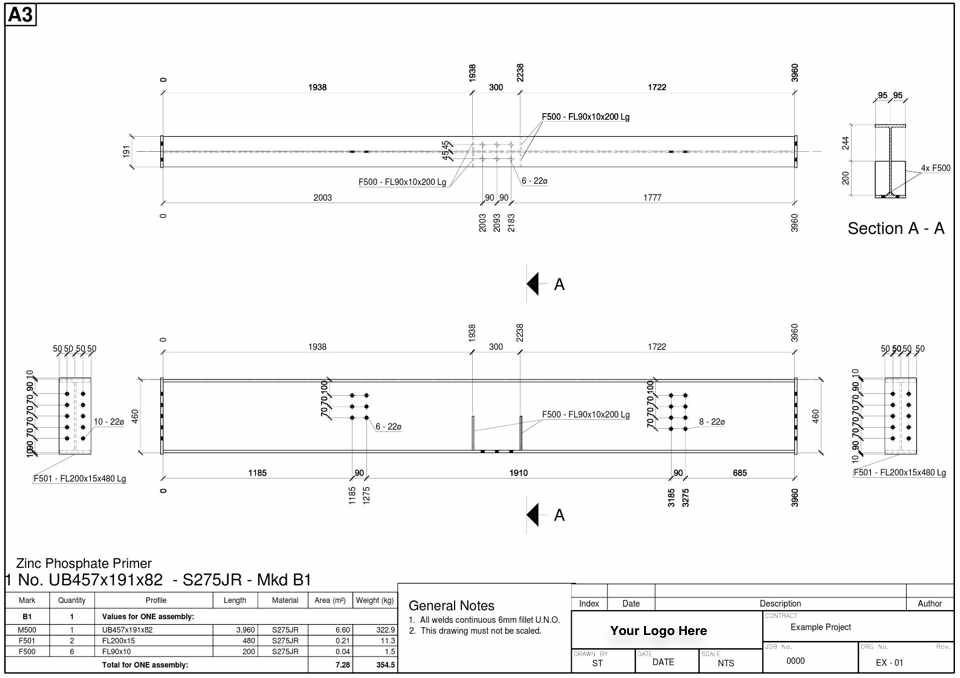

Fabrication drawing of a steel beam

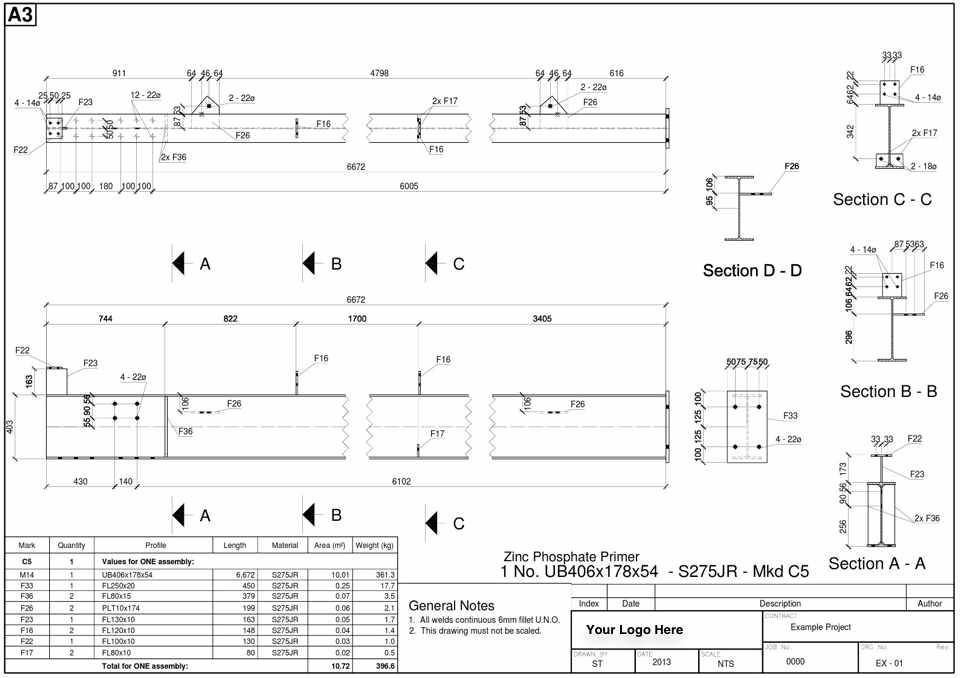

Fabrication drawing of a steel column

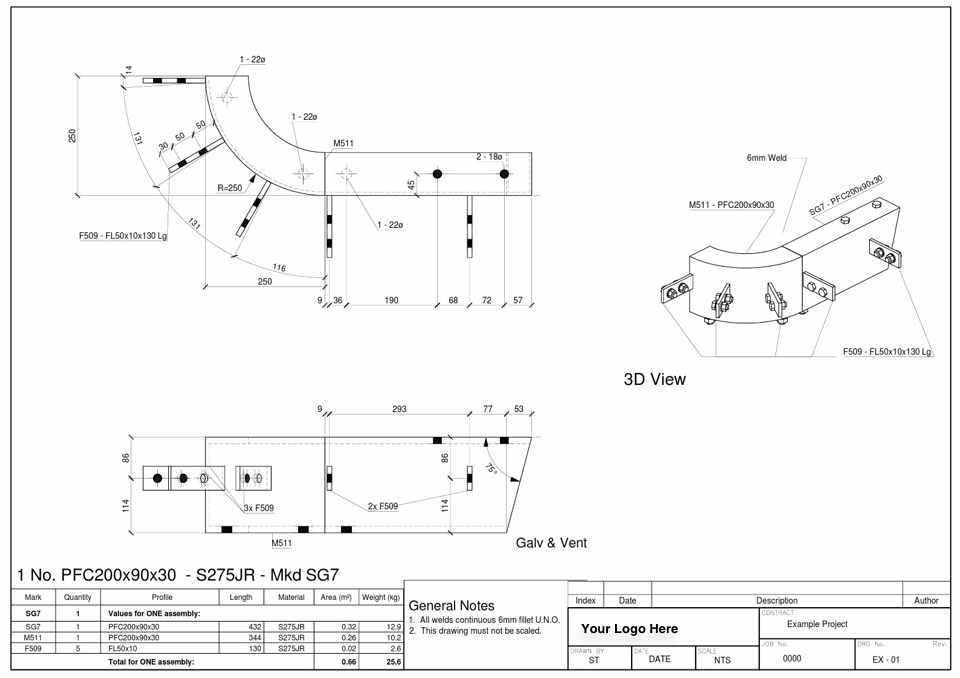

Fabrication drawing of a curved steel channel

Fabrication drawing of a steel stringer

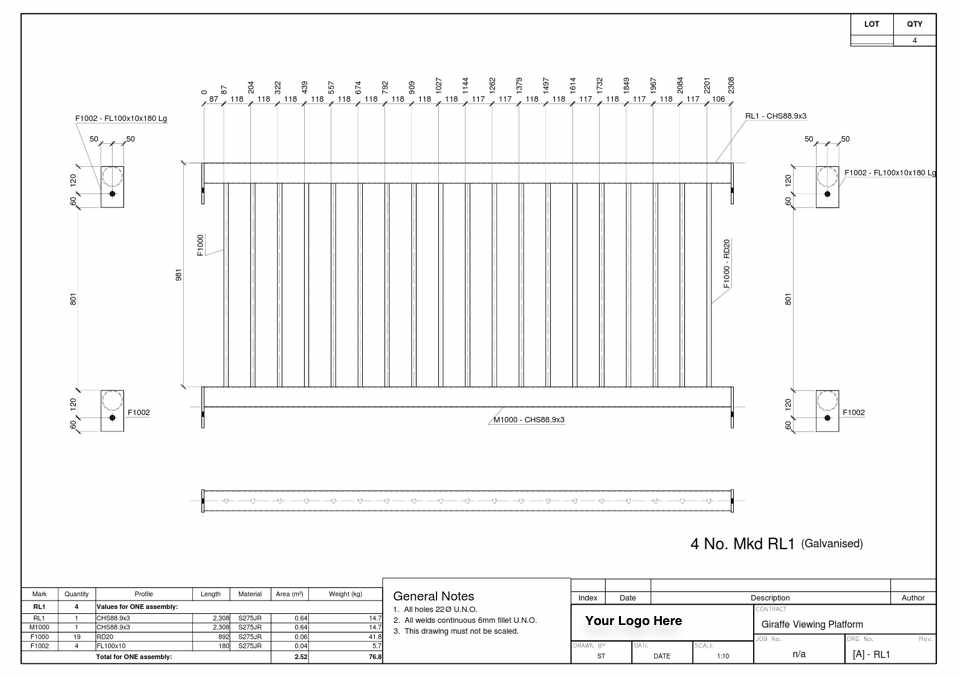

Fabrication drawing of a steel railing

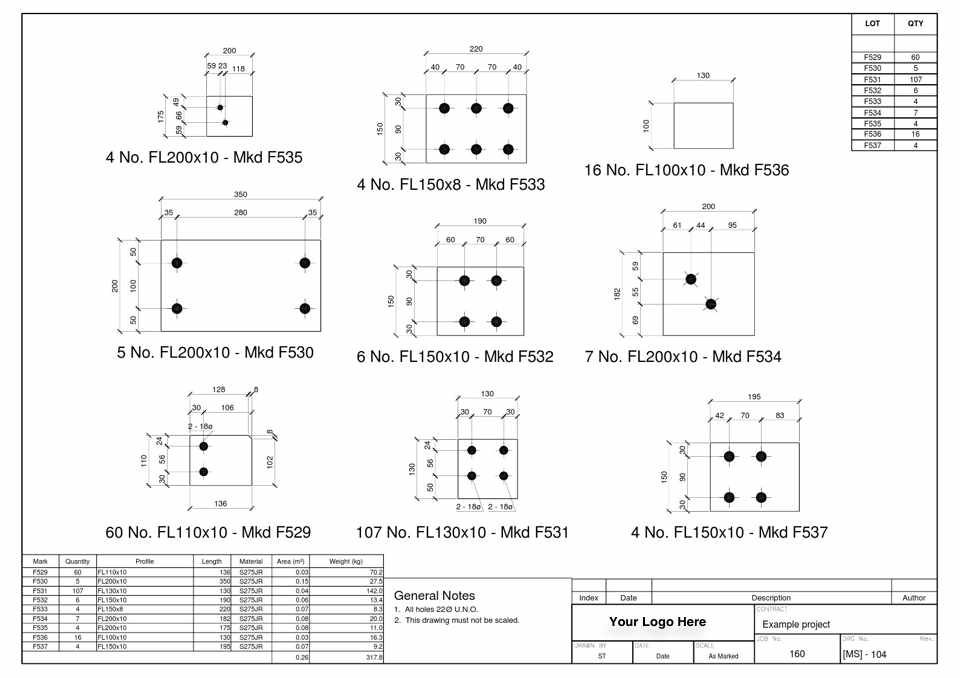

Fabrication drawing of steel plates

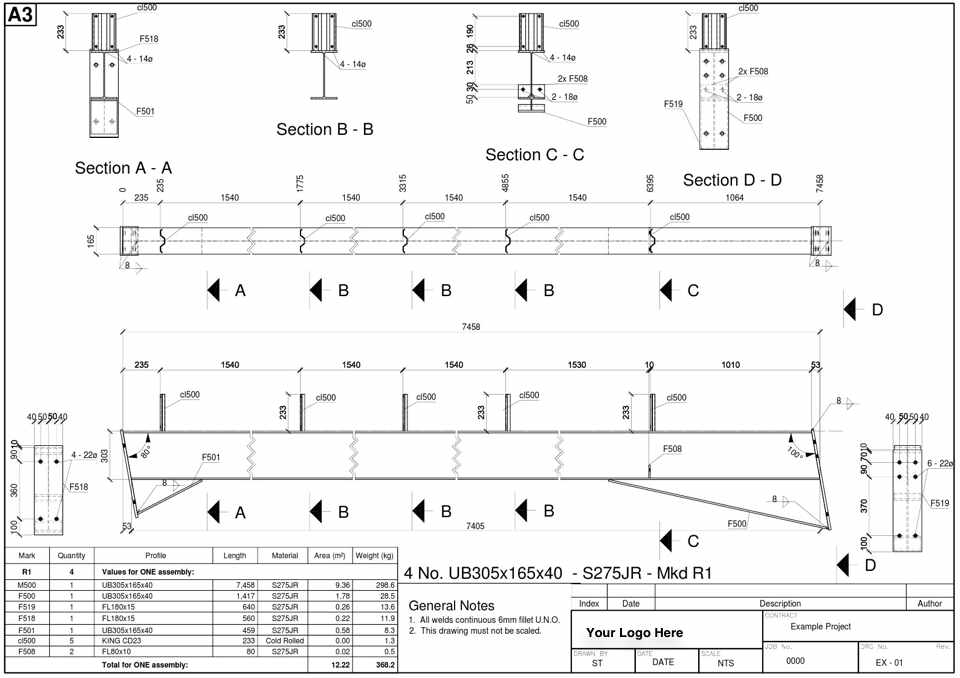

Fabrication drawing of a steel rafter
